Aluminum Frame - 007



Finishes Available:

  • Satin Aluminum

  • Stainless Steel Finish

  • White Powder Coat

  • Black Powder Coat

Projects featuring this door

Technical Specifications

AF007 Cross Section.png

DESIGN GUIDELINES

  • Maximum width & height = 96” (2438.4mm)

  • Minimum width & height = 6.75” (171.45mm)

  • Maximum square footage = 24 sf

  • Contact Cory Manufacturing for dimensions exceeding recommended maximums

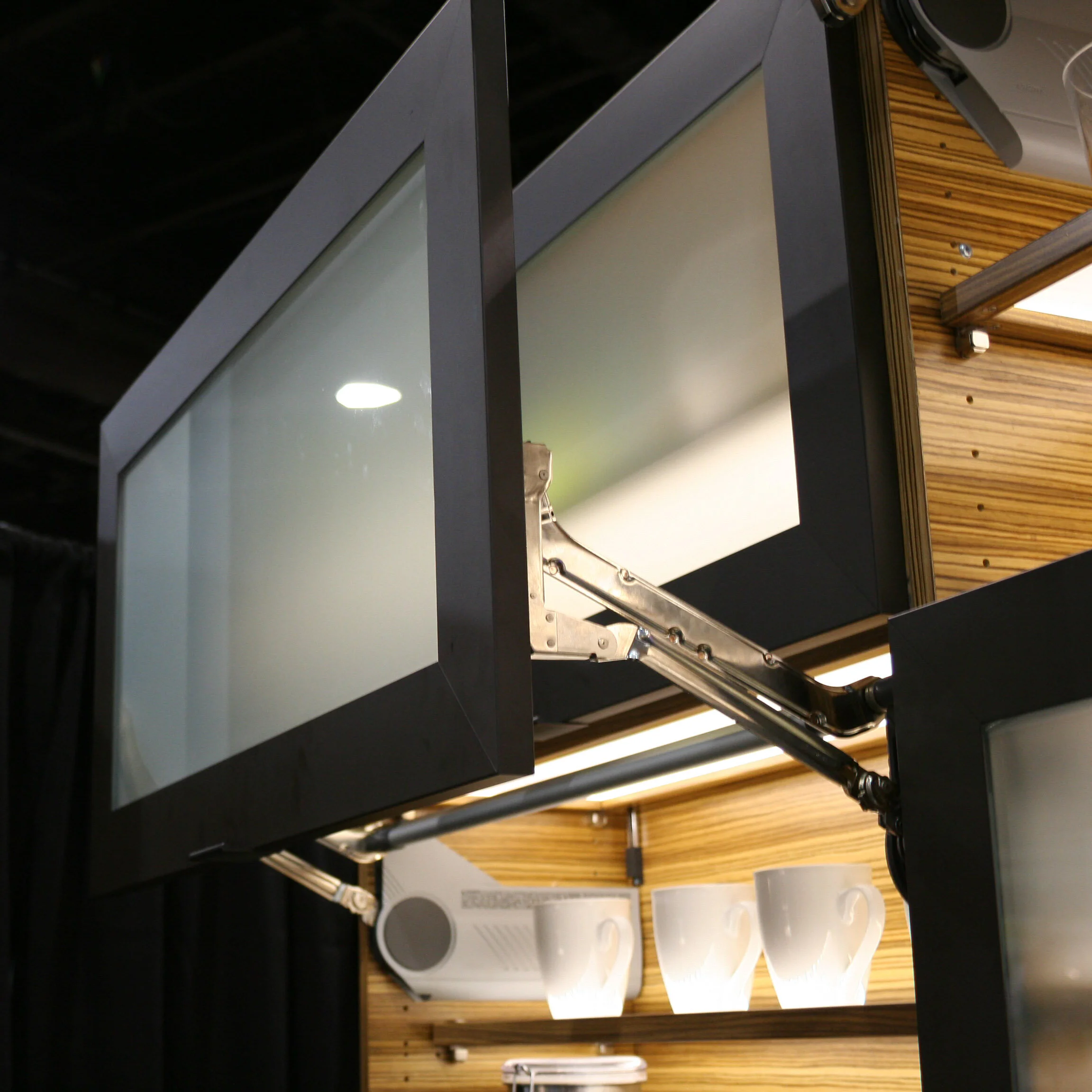

  • Ideal for use with AVENTOS HF (no visible hinge plates through glass)

FRAME SPECIFICATIONS:

  • 2-3/4” (70mm) Frame Width Visible

  • 13/16” (20.5mm) Frame Thickness

INSERT SPECIFICATIONS:

  • 4mm (.156”) with flat edge polish

  • Handle hole can be drilled through the frame
