The RBox

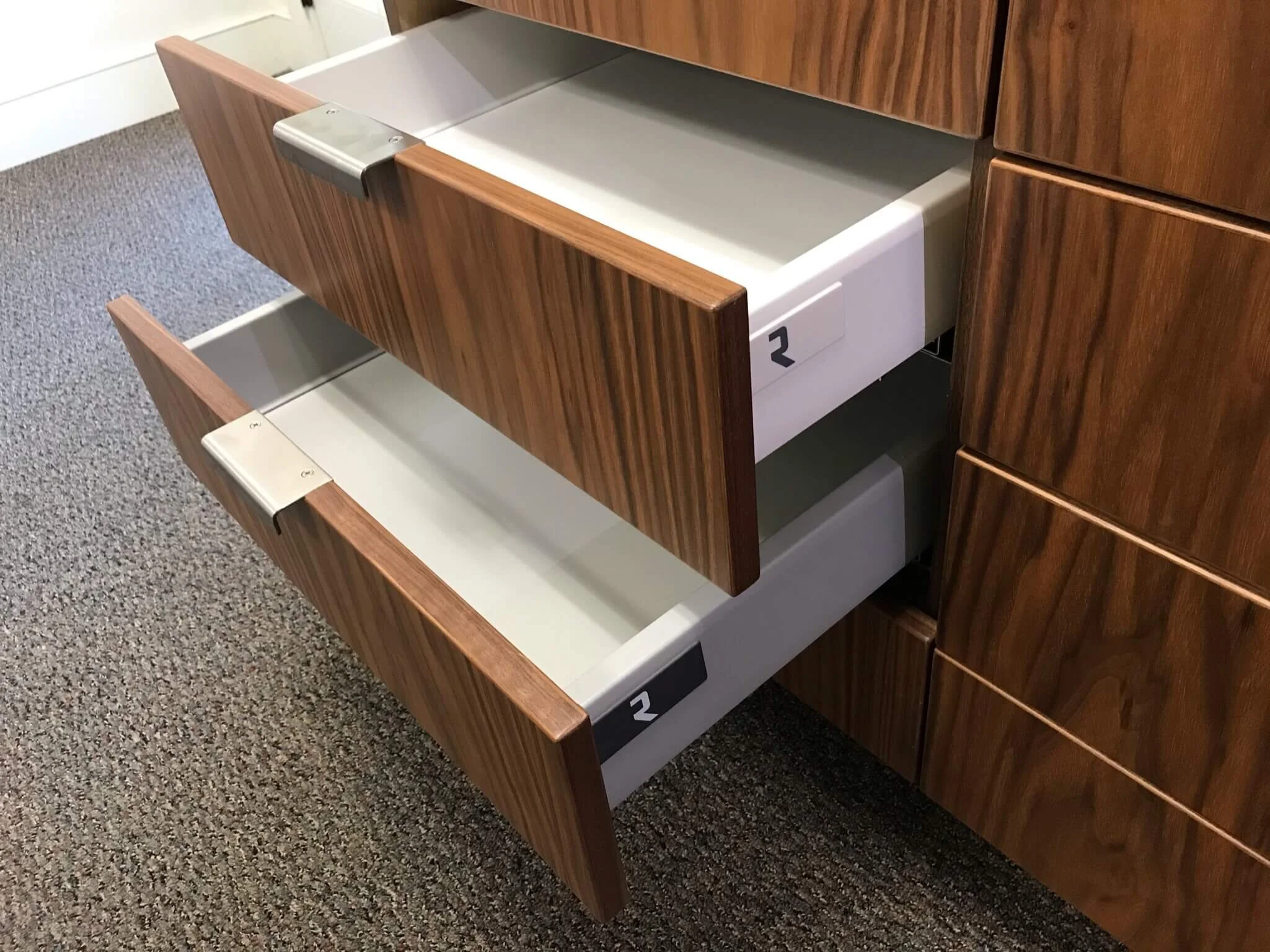

RBox:
Our value drawer box that still has all the features of the premium product but at an affordable price point. goes well with grey or white cabinet interiors and is a good fit for a contemporary drawer.
European style double wall metal drawer. Under mount integrated full extension runner with soft close.
Comes with a 5/8” thick matching melamine bottom and 77 lbs. weight capacity.
Available in White or Grey.
Limitations:
Heavy Duty slide is not available.
Touch Latch Drawer is not available.
Drawer Fronts less than 5-7/8” high are not available
Not available on cabinets over 36” wide
Wooden drawer accessories are not compatible with this metal drawer system
Drawer Heights:
M – 3-5/16” high side, Drawer Fronts 5-7/8” to 7-7/8” high
B – 3-5/16” + 1 Gallery Rail – 5-5/8” high side, Drawer Fronts 8” to 10-3/8” high
H – 3-5/16” + 2 Gallery Rails – 8-1/8” high side, Drawer Fronts 10-1/2” high and over
Runner Lengths:
Full Extension: M–11”,12,14”,16”,18”,20”,22”
Full Extension: B – 11”, 12, 14”, 16”, 18”, 20”, 22”
Full Extension: H – 11”, 12, 14”, 16”, 18”, 20”, 22”
Gallery Rails are available for all runner lengths
Cabinet Depths:
11” Runner requires 12-1/8” d Cabinet Box
12” Runner requires 13-1/4” d Cabinet Box
14” Runner requires 15-1/4” d Cabinet Box
16” Runner requires 17-1/4” d Cabinet Box
18” Runner requires 19-1/8” d Cabinet Box
20” Runner requires 21-1/8” d Cabinet Box
22” Runner requires 23-1/8” d Cabinet Box
