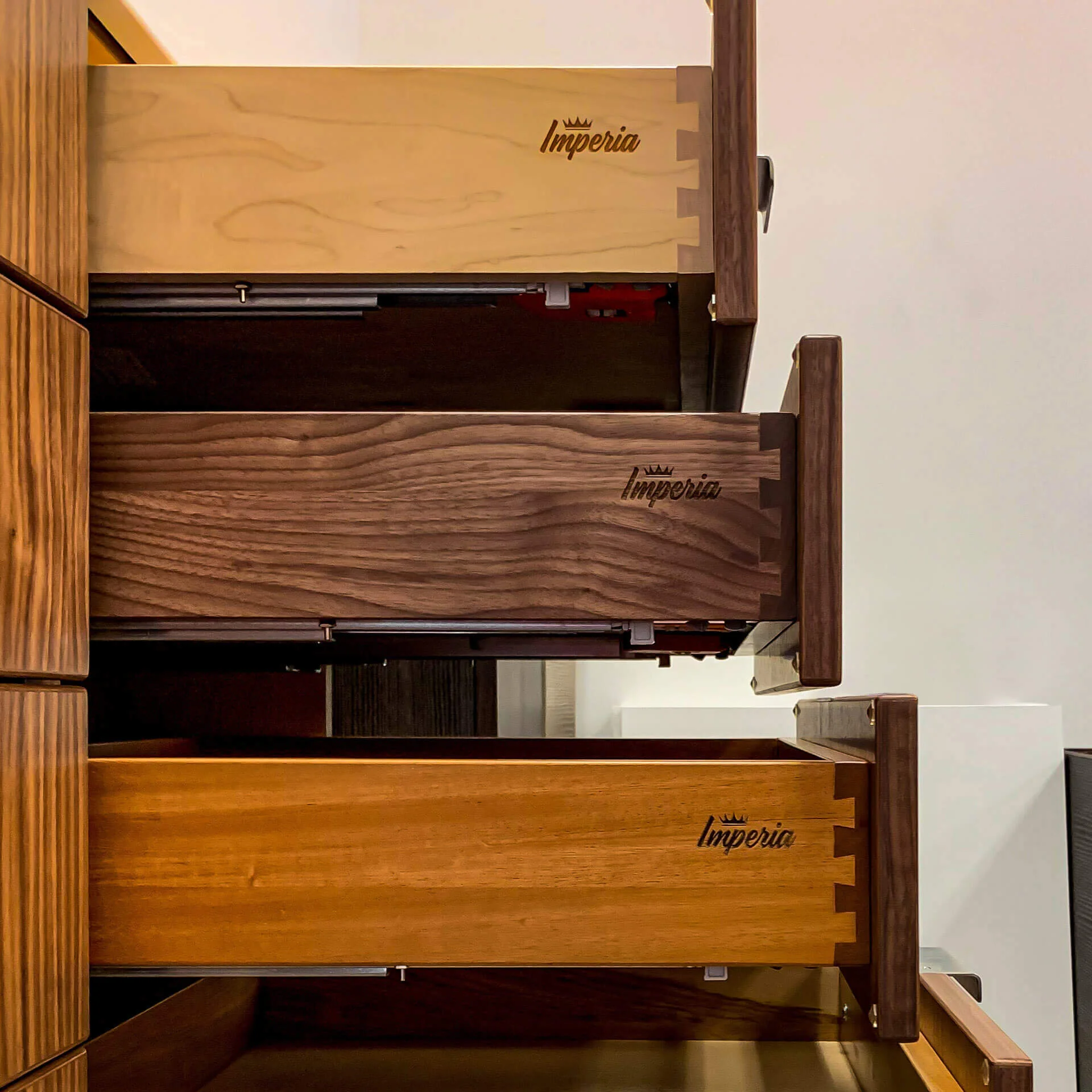

Maple (top), Walnut (middle), & Mahogany (bottom) Dovetail Drawers

Walnut Dovetail Drawerbox

Maple Dovetail Drawerbox

Our most popular drawer!

Maple is our standard - The sides, front and back are constructed from select Hard Maple. The coloration of the selected maple runs from nearly white to an off- white cream color.

Solid wood sides, front and back with fully captive maple plywood bottom.

Also available in Walnut, Mahogany, and several other species.

Finished in a UV cured water based low VOC no formaldehyde finish

Blum Tandem under mount, fully concealed full extension runner with soft close.

5/8" solid maple sides with a 3/8” thick birch plywood bottom and a 100 lbs. static load weight capacity.

This drawer box type has the following options available:

a. Upgrade to Cherry, Walnut, Mahogany, White Oak or Cedar
b. Heavy Duty Slides with a 150 lbs. capacity
c. Lateral Stabilizers for drawers 39” wide and larger
d. Touch latches with progressive spring rates for large drawers and wastes
e. Extended length runners for drawers up to 24” deep, requires carriage return.

Species:

Select Hard Maple, color ranges from nearly white to an off-white cream color.

This drawer system is also available in Walnut, Cherry, Mahogany, White Oak and Cedar.

Limitations:

None

Drawer Heights:

N – 2-1/8” high side, Drawer Fronts 4-1/2” high to 5-3/4” high
M – 3-5/8” high side, Drawer Fronts 5-7/8” high to 6-7/8” high
K – 5-1/8” high side, Drawer Fronts 7” high to 10-3/8” high
C – 7-1/8” high side, Drawer Fronts 10-1/2” high to 11-3/4” high
H – 9-1/8” high side, Drawer Fronts 11-7/8” high and over

Runner Lengths:

Full Extension: N – 9”, 12”, 15”, 18”, 21”
Full Extension: M–9”, 12”, 15”, 18”, 21”
Full Extension: K – 9”, 12”, 15”, 18”, 21”
Full Extension: C – 15”, 18”, 21”
Full Extension: H – 15”, 18”, 21”

Cabinet Depths:

9” Runner requires 11-1/4” d Cabinet Box
12” Runner requires 13-5/8” d Cabinet Box
15” Runner requires 16-5/8” d Cabinet Box
18” Runner requires 19-5/8” d Cabinet Box
21” Runner requires 22-5/8” d Cabinet Box

Suggested:

Specify heavy duty slides on deep drawers when cabinet width is greater than 36”
Specify lateral stabilizers on drawers greater than 36” wide
Touch Latches are available with soft close feature
Touch latches have different spring rates based on drawer load
