Aluminum Frame - 003



Finishes Available:

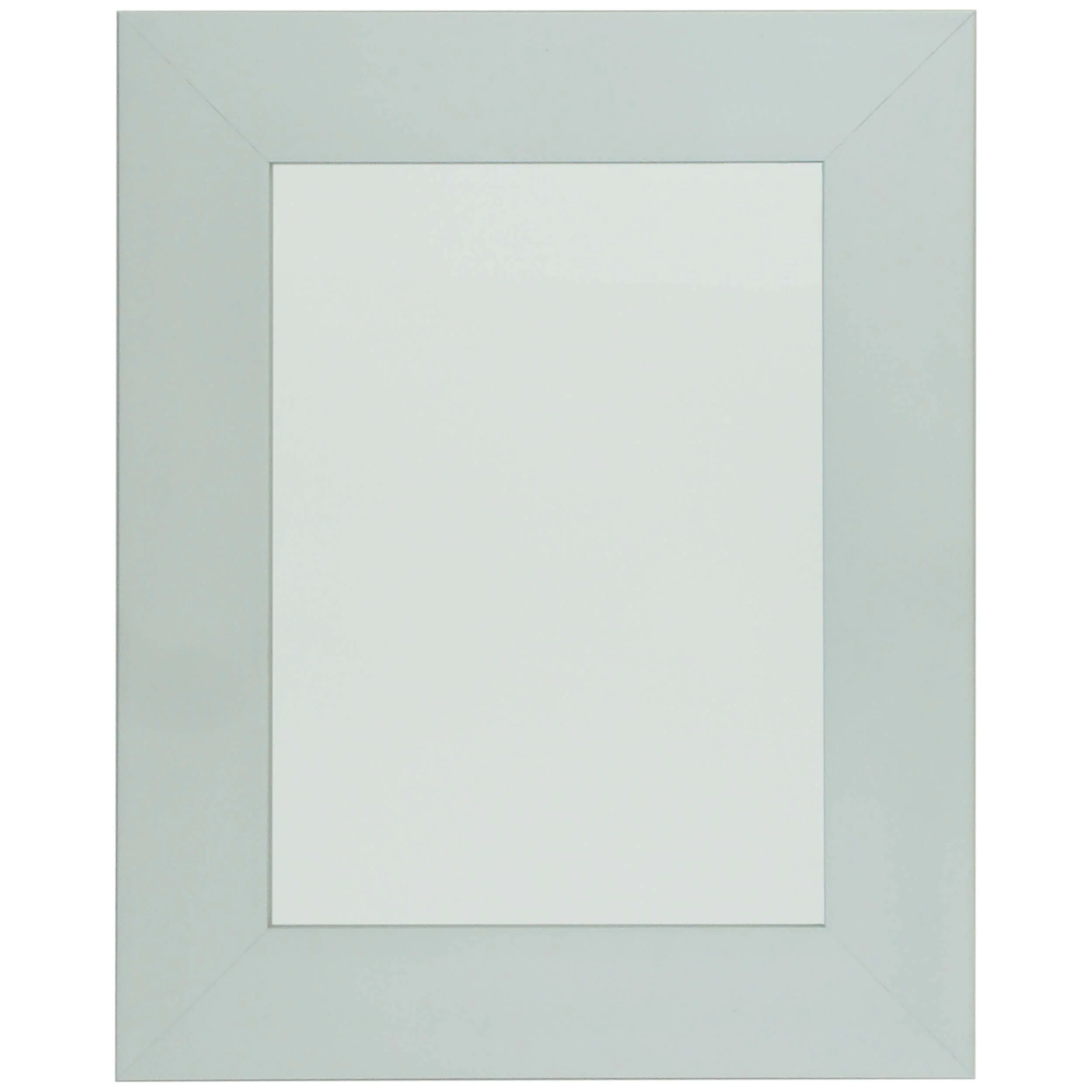

  • Satin Aluminum

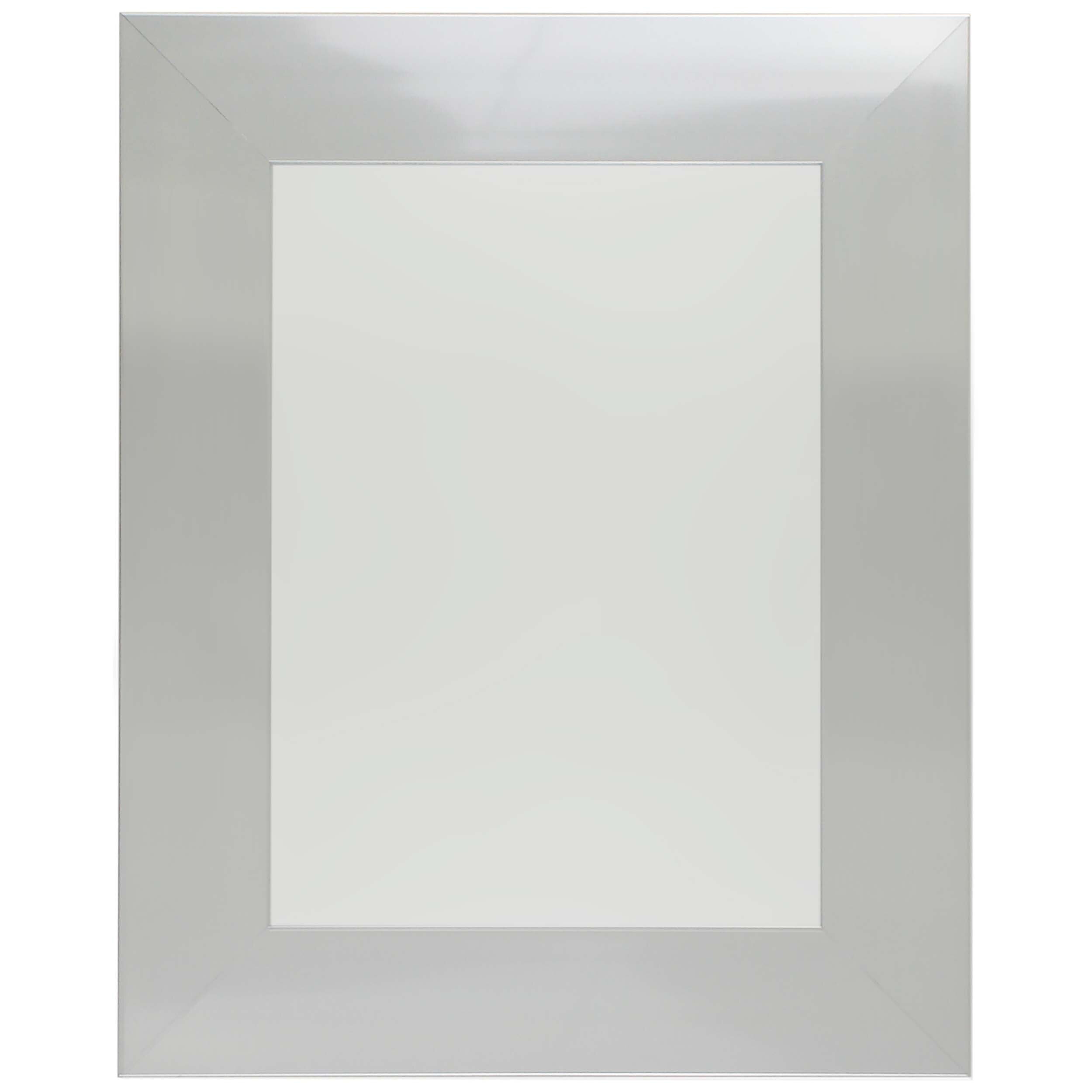

  • Stainless Steel Finish

  • White Powder Coat

  • Black Powder Coat

Projects featuring this door

Technical Specifications

AF003_Cross Section.jpg

DESIGN GUIDELINES

  • Maximum width & height = 96” (2438.4mm)

  • Minimum width & height = 5.5” (139.7mm)

  • Maximum square footage = 24 sf

  • Contact Cory Manufacturing for dimensions exceeding recommended maximums

FRAME SPECIFICATIONS:

  • 2-1/8″ (54mm) Frame Width

  • 13/16″ (20.5mm) Frame Thickness

INSERT SPECIFICATIONS:

  • 4mm (.156”)

  • Handle hole can be drilled through the frame
