Aluminum Frame - 001



Finishes Available:

  • Satin Aluminum

  • Stainless Steel Finish

  • White Powder Coat

  • Black Powder Coat

Projects featuring this door

Technical Specifications


DESIGN GUIDELINES

  • Maximum width & height = 48” (1219mm)

  • Minimum width & height = 5.5” (139.7mm)

  • Maximum square footage = 8 sf

  • NOT recommended for drawer fronts

  • Contact Cory Manufacturing for dimensions exceeding recommended maximums

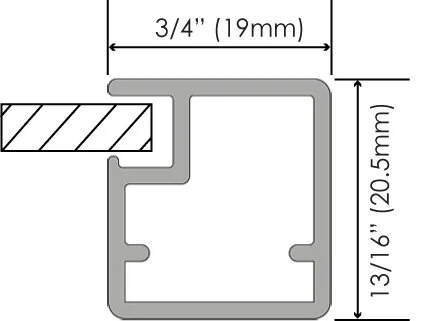

FRAME SPECIFICATIONS:

  • 3/4″ (19mm) Frame Width

  • 13/16″ (20.5mm) Frame Thickness

INSERT SPECIFICATIONS:

  • 4mm (.156”)

  • Handle hole can be drilled through the frame
